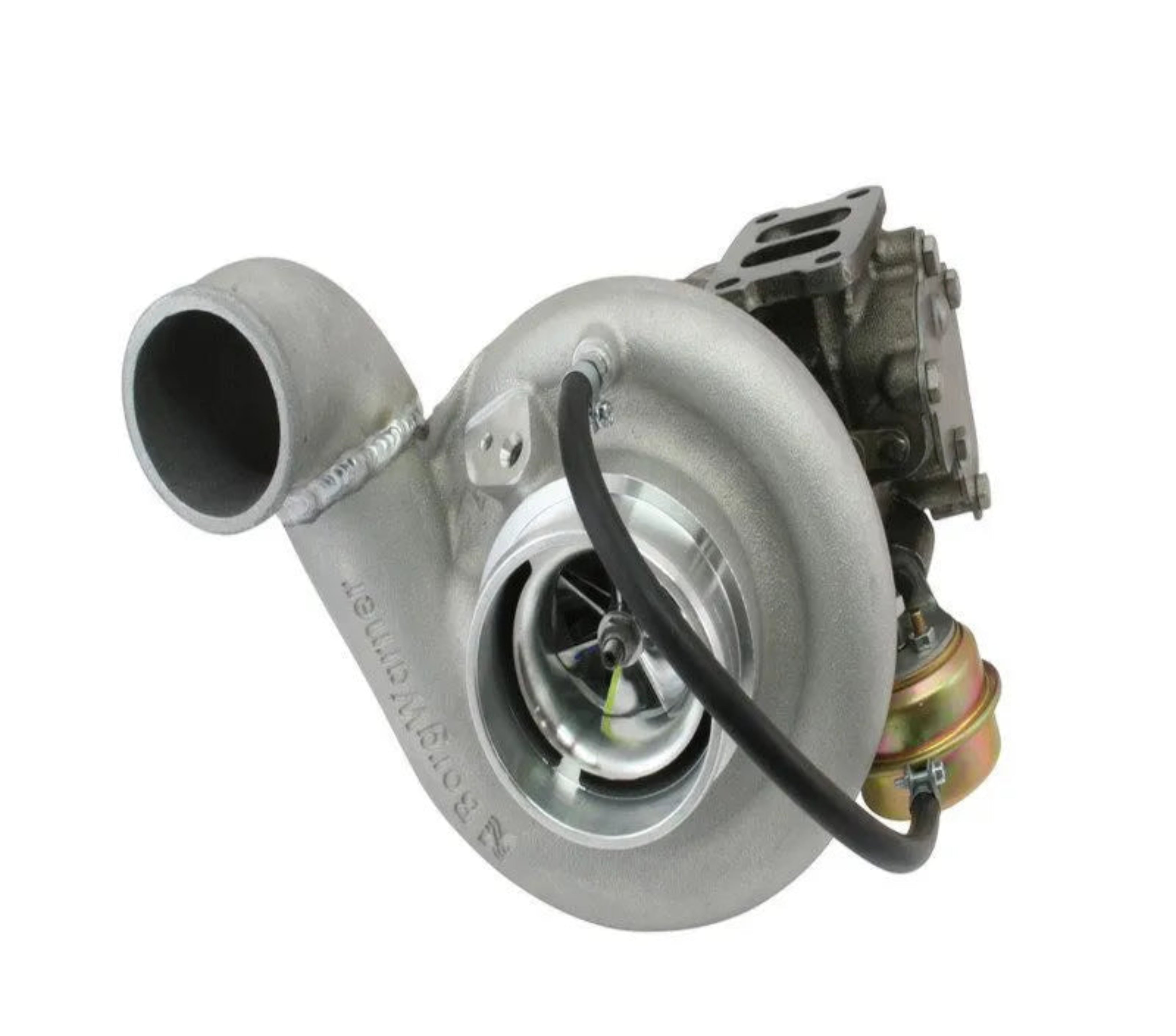

S362SX-E Drop-In Turbo Kit for 3rd Gen Dodge Ram 5.9L Cummins

BorgWarner

S362SX-E Drop-In Turbo Kit for 3rd Gen Dodge Ram 5.9L Cummins

$1,475.00

Pay in 4 interest-free payments of $27.50 with PayPal

Learn more →

Starting with $10.00/mo with Affirm

Learn more →
Description
httpv://www.youtube.com/watch?v=aXAj9HcGb9c The Borg Warner SXE turbo line introduces the latest in turbo technology. With a new/redesigned compressor housing and a Forge Milled Compressor wheel (FMW), the SX-E turbos not only outflow their SX3/4 counterparts by a substantial amount, but they spool faster and come standard with a 360° thrust-bearing, allowing them to last longer and run higher power levels. Get the most out of your truck and ahead of the competition with a Borg Warner SX-E turbo. [row] [col span="1/3"]

Borg Warner SX-E drop-in kit features:

  • Twin hydrodynamic journal bearings
  • 360° thrust bearing (standard)
  • FMW compressor wheel with extended tip technology
  • Integrated speed sensor port
  • Adjustable compressor and turbine housing orientation
  • Compressor cover re-circulation grooves
  • 62/63/64mm Compressor wheel Inducer Diameter
  • 68mm Turbine Wheel Outer Diameter
  • Twin Scroll .70/80 AR Wastegated Turbine Housing
  • Wastegate set to open at 50psi. (Custom wastegate pressures available upon request)
[/col] [col span="1/3"]

Borg Warner Turbos SX-E Drop-in Turbo Includes:

  • 3S62sx-e style Turbocharger with 68mm Turbine
  • Machining for 2-3/4" Elbow
  • 2-3/4" Compressor Elbow & Clamp
  • 98.5-07 24v 5.9L Oil Adapter Fitting
  • Twin Scroll .70/80 a/r Wastegated Turbine Housing-HE351
  • T3 Turbo/Manifold Gasket
  • Oil Drain Gasket
  • 17" Power Driven Diesel Sticker
  • Wastegate Fooler
[/col] [col span="1/3"] The purchase of this kit includes of 1 S362SX-E turbo:
  1. S362sx-e (62mm compressor wheel, 620 HP capable)
[/col] [/row] [row]   We recommend the installation of this turbo to be done by a certified mechanic. The S300SX-E line of turbos were not designed by Borg Warner as “drop-ins” for the Dodge 3rd-gen Cummins trucks. However, because of the SX-E’s growing popularity, we have designed this kit to bridge the gap and make installing an S300SX-E turbo into your truck as painless as possible. Most of the necessary parts are provided including the shorter manifold studs & 3/8"-16x1.25" Drain Bolts will be needed to complete the installation. (Drilling Required for Drain Bolts)   Check out our Turbo Accessories to get the most out of your turbo!   NOTE: This kit is designed to fit with the stock intercooler piping and air filter set-up, we cannot guarantee fitment if you have aftermarket parts/versions [/row]

Product Details

  • Vendor BorgWarner
  • SKU 13009099056
