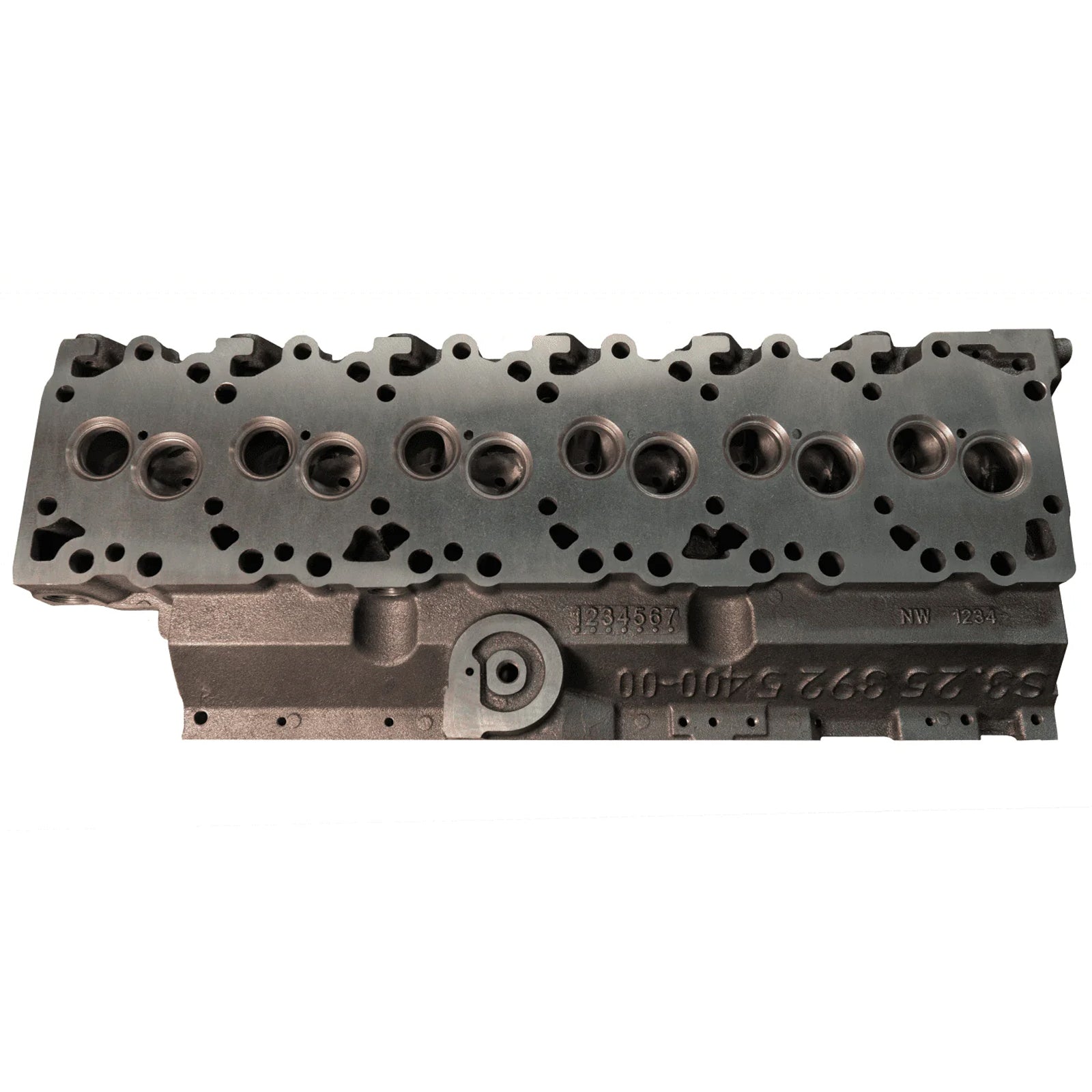

Power Driven Stage 2 Hot Street CNC-Ported Cylinder Head for 89-98 12v Cummins
Power Driven Stage 2 Hot Street CNC-Ported Cylinder Head for 89-98 12v Cummins
Couldn't load pickup availability
Power Driven’s 12v Cummins Stage 2 CNC-Ported Hot Street Cylinder Head features a new aftermarket casting that is surfaced to OEM specifications in-house using state-of-the-art equipment to ensure reliable head gasket sealing. These heads receive Power Driven’s hot street port job, enlarged pushrod holes for better clearance and improved oil drainback, and threaded freeze plugs for reliable operation at high rpm. In addition, every CNC-ported Power Driven cylinder head is machined for compatibility with our Doweled Batwing Rocker Pedestals. After porting, valve and seat work is performed to optimize overall port flow and ensure optimal valve sealing. This head is then assembled by our expert technicians with OEM top-hat-style seals and street conical valve springs.
This head is available in 2 options:
• The “O-Ringed” option is O-ringed to provide the ultimate seal possible with an OEM-style head gasket.
• The “Fire-Ringed” option is machined for fire rings to provide the ultimate seal possible with a fire-ring head gasket.
The Power Driven hot street port is a moderate CNC port job that creates balanced flow across all 6 cylinders while providing large flow gains with OEM-sized valves. On our SuperFlow 1020 test bench, this port produced a 48% increase on the intake and a 46% increase on the exhaust. This port flows an incredible 195 CFM on the intake and 203 CFM on the exhaust at 28".
In real-world back-to-back dyno testing on an 800 hp street truck, the higher flow from this hot street port showed a 75 hp gain versus the baseline stock head. Although a bigger-than-stock camshaft is not required, this port really shines when combined with an aftermarket camshaft with larger-than-stock duration and lift. If your goal is a 1,000-hp street-driven Cummins, this is the head for you!
Compatible with:
- 1989 Dodge 5.9L 12v Cummins
- 1990 Dodge 5.9L 12v Cummins
- 1991 Dodge 5.9L 12v Cummins
- 1992 Dodge 5.9L 12v Cummins
- 1993 Dodge 5.9L 12v Cummins
- 1994 Dodge 5.9L 12v Cummins
- 1995 Dodge 5.9L 12v Cummins
- 1996 Dodge 5.9L 12v Cummins
- 1997 Dodge 5.9L 12v Cummins
- 1998 Dodge 5.9L 12v Cummins
*May not work for all builds due to other engine/vehicle modifications.
Specifications:
| Weight | 137 lbs |
|---|---|
| Dimensions | 33 × 15 × 7 in |
| Head Option (Select an option to see what's included) |
12v Cummins Stage 2 O-Ringed Cylinder Head, 12v Cummins Stage 2 Fire-Ringed Cylinder Head |
| Extended Warranty |
No Extended Warranty, 1-Year Extended Warranty, 2-Year Extended Warranty, 3-Year Extended Warranty |
This product cannot ship to California
