Power Driven Machined Stepped 3rd/Direct Reaction Plate

Power Driven Machined Stepped 3rd/Direct Reaction Plate

In stock
Regular price $35.00

Pay in 4 interest-free payments of $27.50 with PayPal

Starting with $10.00/mo with Affirm

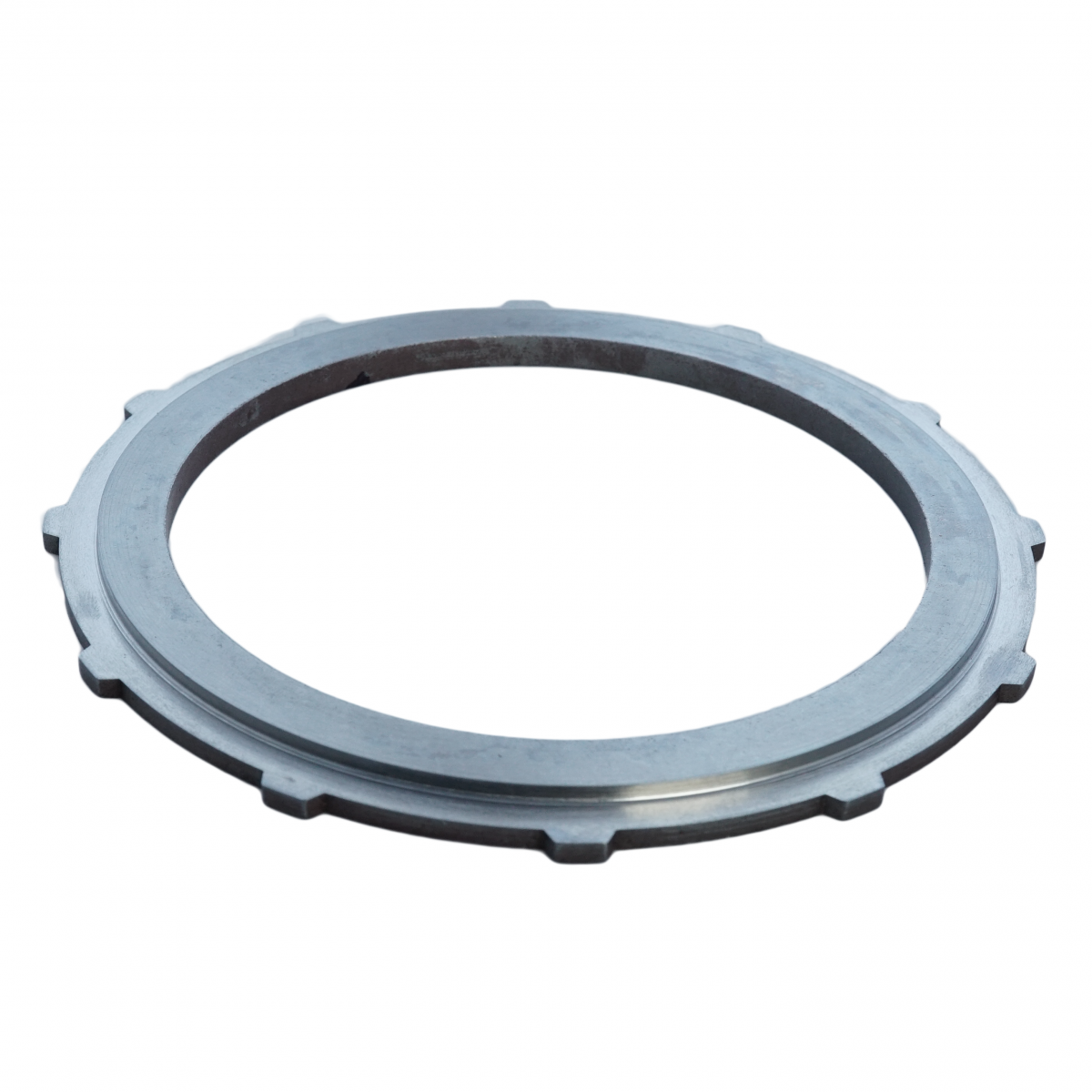

The Power Driven Machined Stepped 3rd/Direct Reaction Plate allows for more third-gear direct clutches. Required to fit (6) GPZ clutches in 47RH or 47RE drum and up to (7) GPZ clutches in 48RE drum.

Note: Some early 47RH and 47RE 3rd/direct drums have a taller aluminum apply piston and will require a new thin .062" snap ring to ensure that adequate clutch clearance is maintained. A minimum of .012" per clutch and a maximum of .020" per clutch is recommended for most applications.

Upgrade your transmission system with the machined stepped 3rd/direct reaction plate for increased clutch capacity and improved performance.

Compatible with:

  • 1994 Dodge 5.9L 12v Cummins
  • 1995 Dodge 5.9L 12v Cummins
  • 1996 Dodge 5.9L 12v Cummins
  • 1997 Dodge 5.9L 12v Cummins
  • 1998 Dodge 5.9L 12v Cummins
  • 1998.5 Dodge 5.9L 24v Cummins
  • 1999 Dodge 5.9L 24v Cummins
  • 2000 Dodge 5.9L 24v Cummins
  • 2001 Dodge 5.9L 24v Cummins
  • 2002 Dodge 5.9L 24v Cummins
  • 2003 Dodge 5.9L 24v Cummins
  • 2004 Dodge 5.9L 24v Cummins
  • 2004.5 Dodge 5.9L 24v Cummins
  • 2005 Dodge 5.9L 24v Cummins
  • 2006 Dodge 5.9L 24v Cummins
  • 2007 Dodge 5.9L 24v Cummins

*May not work for all builds due to other engine/vehicle modifications

Product Details

  • Vendor Power Driven Diesel
  • SKU 23006180906
  • Barcode 23006180906
