Power Driven Stage 2 EcoBoost Turbo — 2013–2016 Ford 3.5L EcoBoost (Set of 2)

The stock 3.5L EcoBoost turbos top out around 350–425 whp. The PDD Stage 2 46mm turbo set pushes that ceiling to 650–800+ whp on E85 or race fuel with proper tuning and supporting mods — while still dropping into the factory turbo locations with no manifold, piping, or fabrication changes. The 46mm billet compressor wheel (vs. stock 36mm) and 51mm/47mm Inconel turbine wheel deliver substantially higher airflow, faster spool, and better top-end flow than stock or Stage 1 units.

Note: The larger compressor wheel requires a larger compressor inlet boot — not included. Compatible with 2011–2012 model years with an aftermarket blow-off valve (tuning recommended).

Specifications

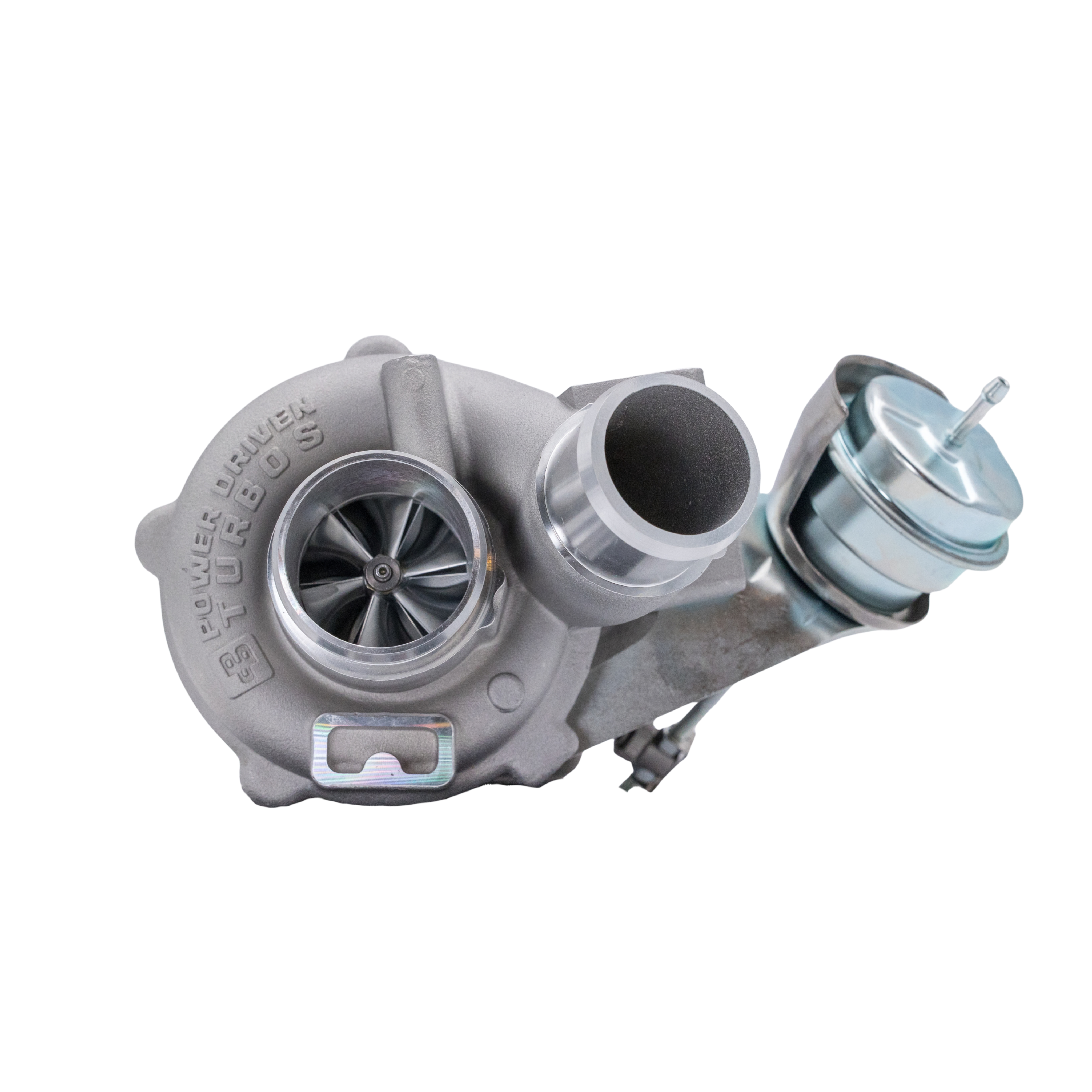

• Compressor wheel: 6+6 blade, 46mm/57mm billet

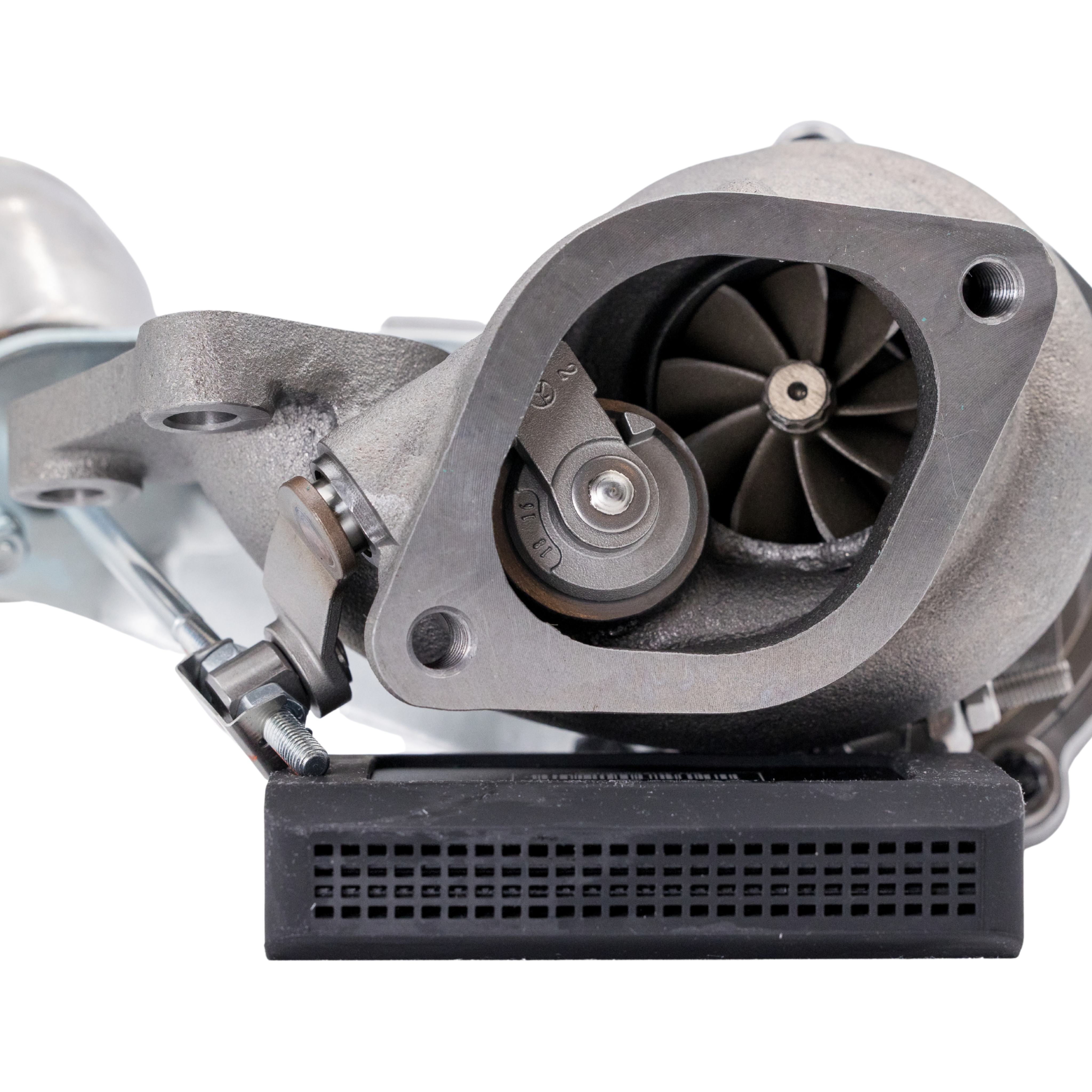

• Turbine wheel: 9 blade, 51mm inducer / 47mm exducer, Inconel
• Max power support: 650–800+ whp (E85 or race fuel with tuning, fueling, intercooler, exhaust, and drivetrain mods)
• Direct drop-in — factory mounting, connections, and wastegate setup retained
• Includes MAHLE complete installation kit (gaskets and fittings)
• No core charge — new turbos

Fits

• 2013–2016 Ford F-150 / Flex / Explorer / Taurus SHO / Edge Sport — 3.5L EcoBoost
• 2011–2012 compatible with aftermarket BOV (tuning recommended)
