Power Driven Batwing Rocker Pedestals 89-98 8v/4BT Cummins
Power Driven Batwing Rocker Pedestals 89-98 8v/4BT Cummins
Couldn't load pickup availability
Power Driven Batwing Rocker Pedestals 89-98 8v/4BT Cummins

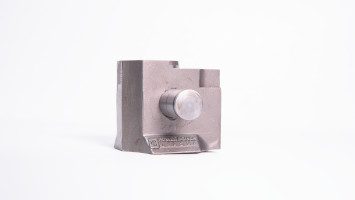

Power Driven Batwing Cummins Rocker Pedestals are 100% American-made. Included is a set of 4 rocker pedestals that are precision cast from 416 stainless steel, heat treated, and CNC machined. These pedestals feature a nearly 90% wider base footprint to offer enhanced valve train stability by reducing pedestal rocking and deflection. This stainless alloy is nearly 3 times stronger than the OEM pedestal material and, working in conjunction with the wider base footprint, virtually eliminates pedestal deflection.
Each pedestal is carefully fitted with a Power Driven Max-Lube Pin. Max-Lube pins are made here in America from hardened chromoly, centerless-ground to size, and featuring enhanced lubrication grooves. Max-Lube pins were developed to increase the hydrodynamic oil wedge at the pin-to-rocker arm wear surface by increasing oil flow across the width of the rocker arm to reduce the common galling issue at the rocker/pin rotating surface.
Power Driven Batwing Rocker Pedestals feature a step for head stud clearance with an innovative radius to reduce stress concentration. If using these pedestals with factory or Power Driven upgraded head bolts, you may need to add a hardened washer under the bolt head to ensure the bolt does not run out of block thread engagement. These batwing rocker pedestals are suitable for both the mildest swap trucks to wild 1,000 hp race engines.
Power Driven Batwing Cummins Rocker Pedestals are compatible with:
- 1989 3.9L 4BT Cummins
- 1990 3.9L 4BT Cummins
- 1991 3.9L 4BT Cummins
- 1992 3.9L 4BT Cummins
- 1993 3.9L 4BT Cummins
- 1994 3.9L 4BT Cummins
- 1995 3.9L 4BT Cummins
- 1996 3.9L 4BT Cummins
- 1997 3.9L 4BT Cummins
- 1998 3.9L 4BT Cummins
*May not work for all builds due to other engine/vehicle modifications
