Power Driven “Batwing” Rocker Pedestals for 89-98 12v/6BT Cummins Diesel
Power Driven “Batwing” Rocker Pedestals for 89-98 12v/6BT Cummins Diesel
Couldn't load pickup availability

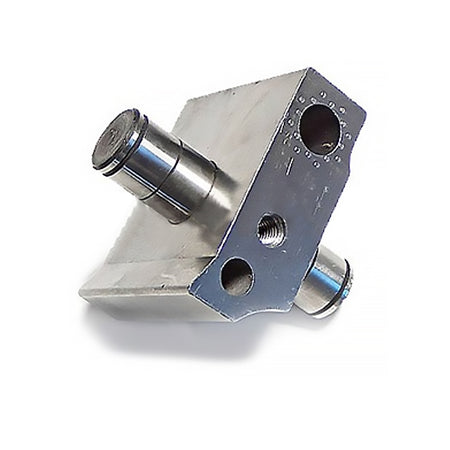

Power Driven Diesel “Batwing” Rocker Pedestals for 12v Cummins are 100% American-made. Included is a set of 6 rocker towers/pedestals that are precision cast from 416 stainless steel, heat treated, and CNC machined. These pedestals feature a nearly 90% wider base footprint to offer enhanced valve train stability by reducing pedestal rocking and deflection. This stainless alloy is nearly 3 times stronger than the OEM pedestal material and, working in conjunction with the wider base footprint, virtually eliminates pedestal deflection.
Each pedestal is carefully fitted with a Power Driven Diesel Max-Lube Pin. Max-Lube pins are made here in America from hardened chromoly, centerless-ground to size, and featuring enhanced lubrication grooves. Max-Lube pins were developed to increase the hydrodynamic oil wedge at the pin-to-rocker arm wear surface by increasing oil flow across the width of the rocker arm to reduce the common galling issue at the rocker/pin rotating surface.
Power Driven Diesel Batwing Rocker Pedestals feature a step for head stud clearance with an innovative radius to reduce stress concentration. If using these pedestals with factory or Power Driven Diesel upgraded head bolts, you may need to add a hardened washer under the bolt head to ensure the bolt does not run out of block thread engagement. These batwing rocker pedestals are suitable for both the mildest stock Cummins-powered trucks to wild 2,000 hp race engines.
12v "Batwing" Cummins Rocker Pedestals are compatible with:
- 1989 Dodge 5.9L 12v Cummins
- 1990 Dodge 5.9L 12v Cummins
- 1991 Dodge 5.9L 12v Cummins
- 1992 Dodge 5.9L 12v Cummins
- 1993 Dodge 5.9L 12v Cummins
- 1994 Dodge 5.9L 12v Cummins
- 1995 Dodge 5.9L 12v Cummins
- 1996 Dodge 5.9L 12v Cummins
- 1997 Dodge 5.9L 12v Cummins
- 1998 Dodge 5.9L 12v Cummins
*May not work for all builds due to other engine/vehicle modifications
