- Power Driven 134 lb 24v Race Conical Valve Springs
- Rated up to 6,000 RPM
- Designed for 100+ psi boost
- Fits 98.5 – 18 5.9L/6.7L 24v Cummins
The Power Driven 134 lb. 24v Race Conical Valve Springs were created to address valve float on high-performance 24v Cummins race engines making 100+ psi boost pressure. In testing various available 24v springs, we found that valve float and resulting cam, lifter, valve, and retainer damage was common as over 5,000 is reached or as boost surpassed 100 psi. After destroying tappets and a camshaft on Todd’s 6.4L P-pumped 24v and destroying valves and chromoly retainers on Myer’s 6.7L common rail, we have developed a new race conical valve spring with enough seat pressure to handle 100+ boost and a conical design to dampen valve spring harmonics that occur between 5,000 and 6,000 rpm.
We recommend these valve springs for all 24v Cummins engines pushing over 80 psi boost and/or 4,800 rpm. These performance valve springs will dramatically reduce or prevent valve float, and we recommend them for all dedicated race applications.

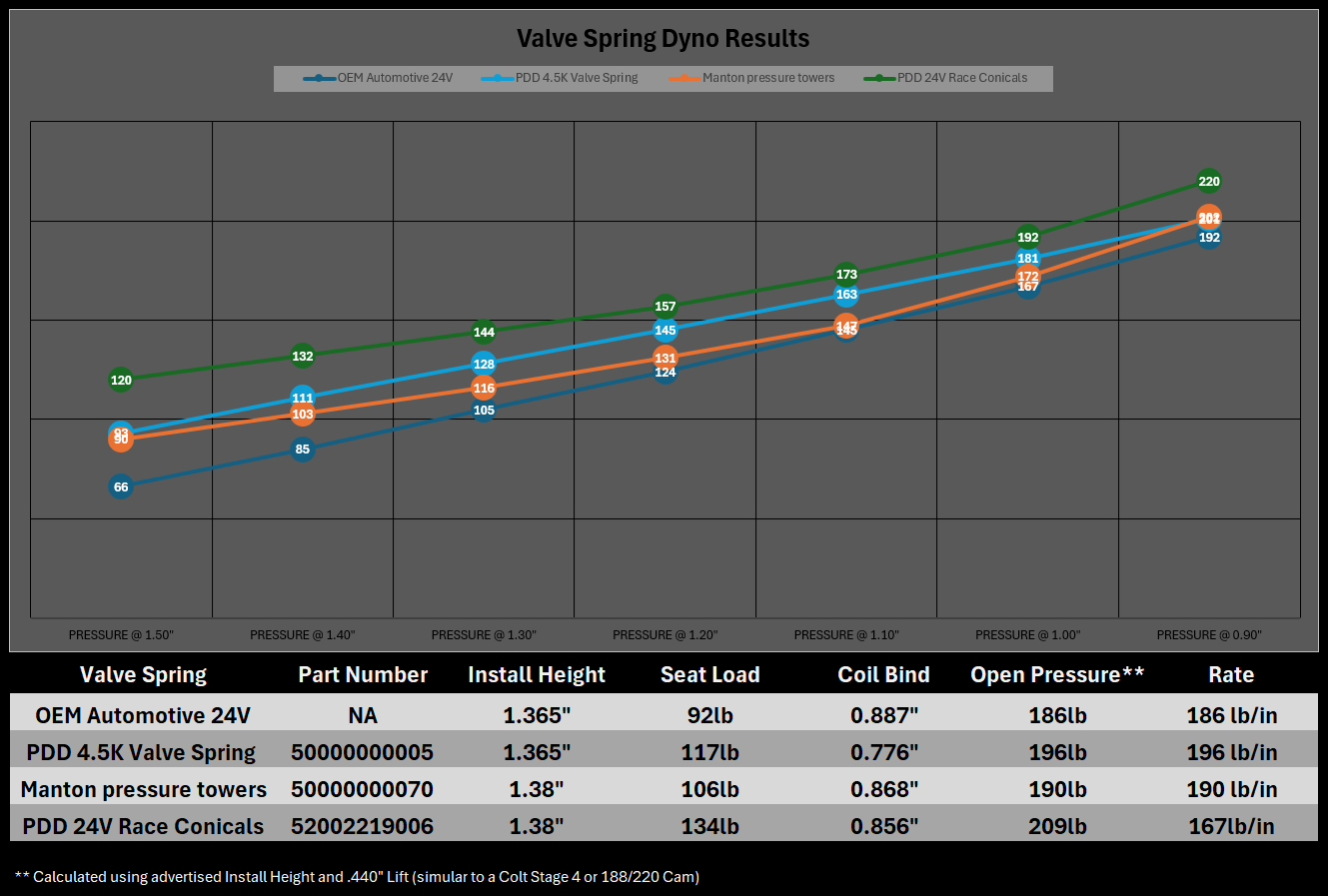

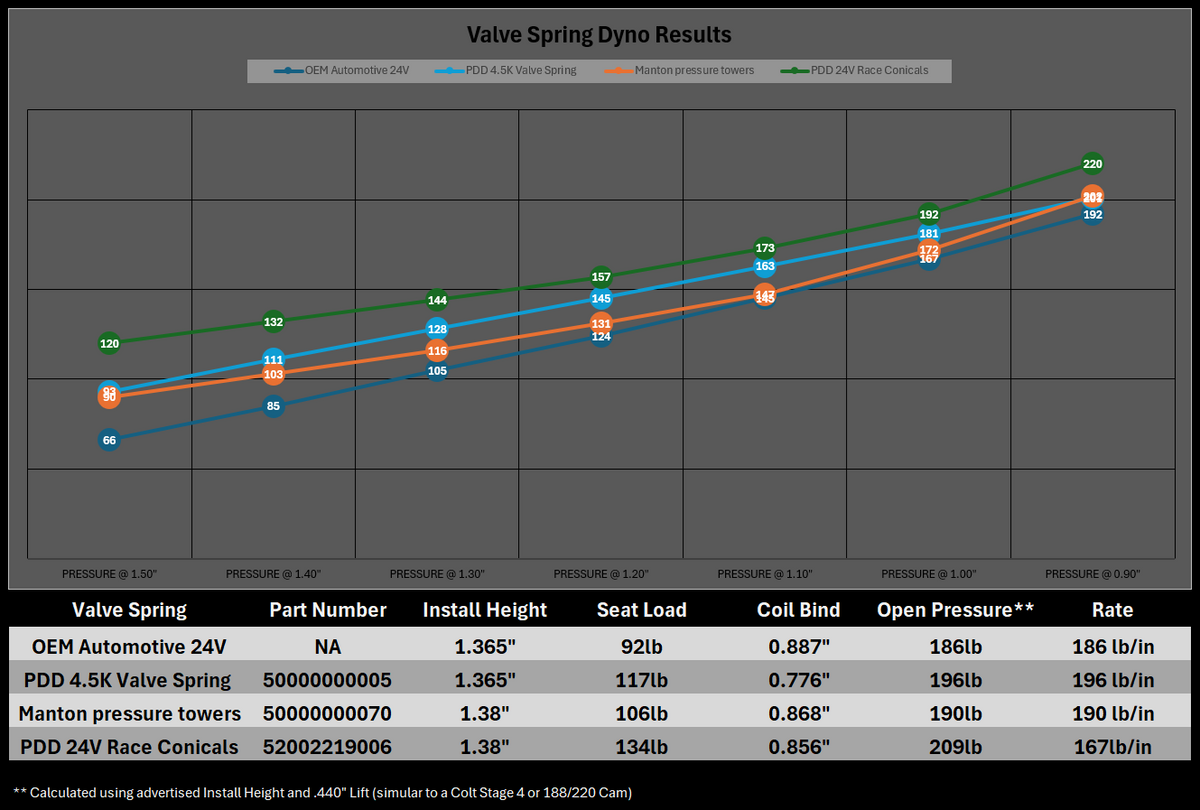

Seat pressure: 134 lbs. at 1.38” installed height
Open pressure: 213 lbs. at 0.906” (0.474” valve lift)
Coil bind height: 0.856”
