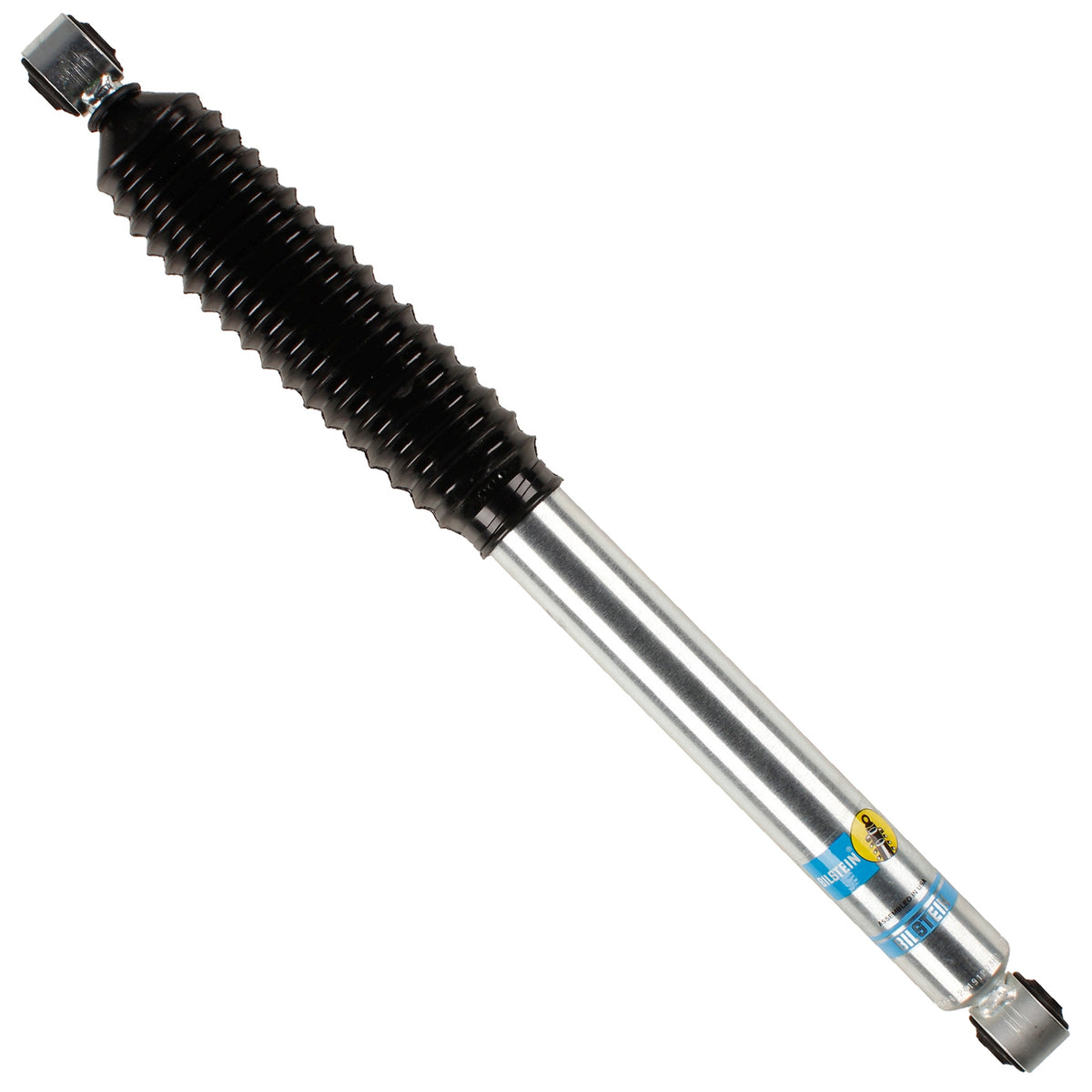

Bilstein 5100 Series Shock Absorber 24-191203 (1994-2012 Dodge Ram 3500 & 1999-2010 GM 2500/3500HD Rear Lifted 0-2")
Bilstein 5100 Series Shock Absorber 24-191203 (1994-2012 Dodge Ram 3500 & 1999-2010 GM 2500/3500HD Rear Lifted 0-2")
Couldn't load pickup availability
The Bilstein 5100 Series Shock Absorber 24-191203 are high gas pressure monotube shocks that are engineered specifically for pickups, SUVs and Jeeps that have been lifted. The shocks feature a 46mm digressive piston with self-adjusting deflective disc valving. Featuring a super damping ability, the 5100 Series Shock Absorber is ideal for heavy hauling or occasional off-road use, while maintaining an exceptional street ride.
Specifications:
- Part Number: 24-191203
- Old Part Number: F4-BE5-6647-H1
- Setting: 5100 Series
- Position: Rear
- Description: Rear Lifted Height: (0-2″*)
- Quantity Needed Per Vehicle: 2 (Sold Individually)
- Finish: Zinc plated
- Reservoir: No
- Body Design: 46mm ID smooth body (Non-coilover)
Measurements:
- Collapsed Length (IN): 16.95
- Extended Length (IN): 27.36
- Collapsed Length (MM): 430.5
- Extended Length (MM): 695
Applications:
- 1994-2001 Dodge Ram 1500 4WD – Rear (Lifted 4″)
- 1994-2002 Dodge Ram 2500/3500 4WD – Rear (Lifted 2″)
- 2003-2012 Dodge Ram 2500/3500 4WD – Rear (Lifted “0-1”)
- 2003-2013 Dodge Ram 2500 4WD – Rear (Lifted “0-1”)
- 2001-2010 GM 2500/3500HD 4WD – Rear Lifted (“0-1”)
Note: *Lift Height is suggested by mfg. Due to the many different aftermarket suspension systems it is recommended that a measurement is taken for proper application. An eye to eye shock is measured from the center of one eyelet to the center of the other eyelet. Shock Absorbers sold individually.
