Bilstein 5100 Series Shock Absorber 24-185776 (1994-2012 Dodge Ram 3500 (Front) Lifted 0"-2.5" 4wd | 2005-2016 Ford Super Duty 4WD (Front) Lifted 4"
Bilstein 5100 Series Shock Absorber 24-185776 (1994-2012 Dodge Ram 3500 (Front) Lifted 0"-2.5" 4wd | 2005-2016 Ford Super Duty 4WD (Front) Lifted 4"
Couldn't load pickup availability

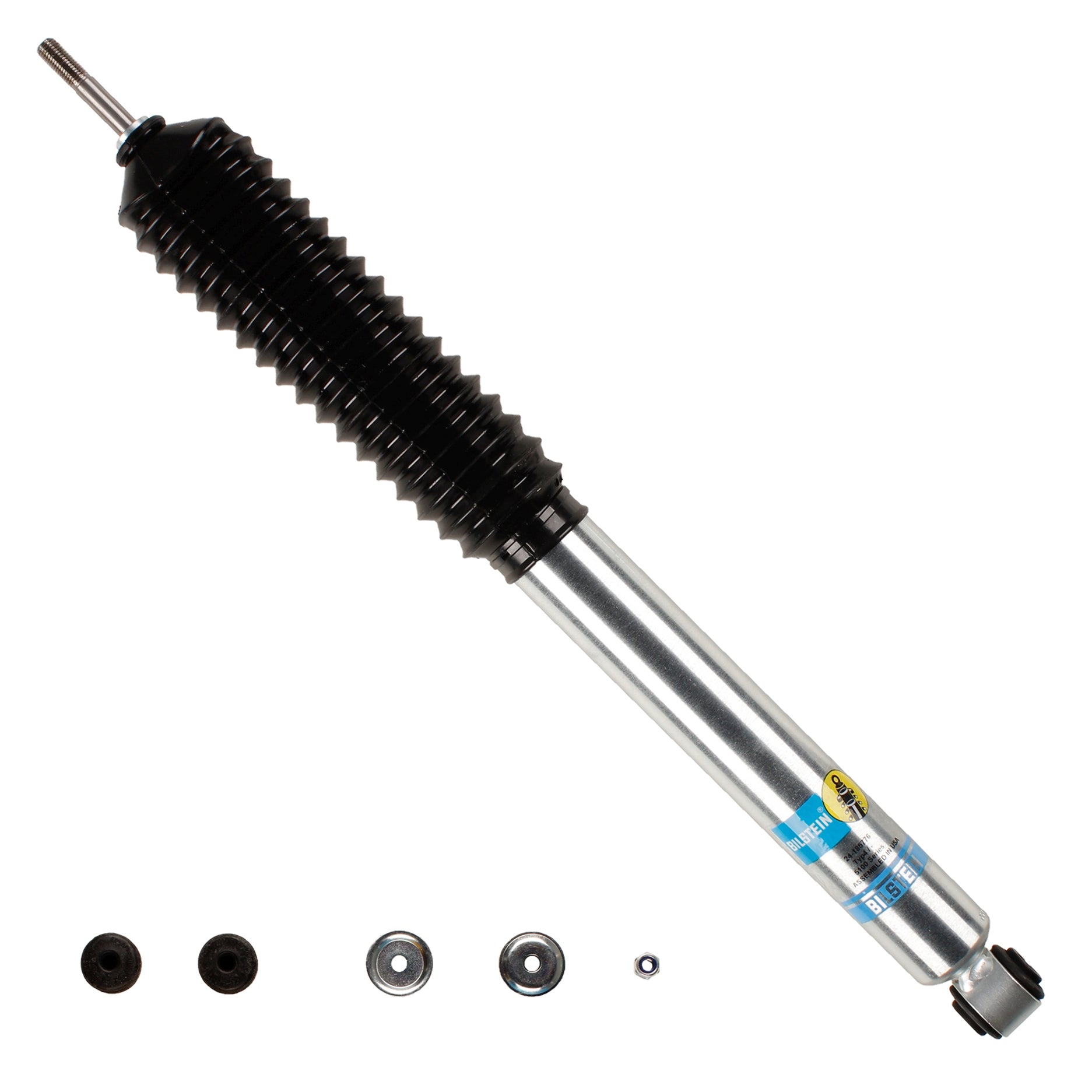

The Bilstein 24-185776 5100 Series Shock Absorbers are high gas pressure monotube shocks designed specifically for lifted pickups, SUVs and Jeeps. The shocks feature a 46mm digressive piston with self-adjusting deflective disc valving. They offer super damping ability that makes them ideal for heavy hauling or occasional off-road use, while maintaining an exceptional street ride.
Specifications:
- Part Number: 24-185776
- Old Part Number: F4-BE5-6681-H8
- Setting: 5100 Series
- Drive Type: 4WD
- Position: Front
- Quantity Needed Per Vehicle: 2 (Sold Individually)
- Description: Front Lifted Height: (0″-2.5″ Dodge) (4″ Lift Super Duty)**
- Finish: Zinc plated
- Reservoir: No
- Body Design: 46mm ID smooth body (Non-coilover)
Measurements:
- Collapsed Length (IN): 14.88
- Extended Length (IN): 24.37
- Collapsed Length (MM): 378
- Extended Length (MM): 619
Applications:
- 1994-2013 Dodge Ram 2500 4WD – Front (Lifted 0″-2.5″)
- 1994-2012 Dodge Ram 3500 4WD – Front (Lifted 0″-2.5″)
- 2005-2016 Ford Super Duty F-250/350 4WD – Front (Lifted 4″)
Note: *Lift Height is suggested by mfg. Due to the many different aftermarket suspension systems it is recommended that a measurement is taken for proper application. A pin to eye shock is measured from the base of the stem where the mounting hardware rests to the center of the eyelet. Shock Absorbers sold individually.
