• Change Screens/Colors
• Auto-Dimming Backlight
• Read & Clear Trouble Codes
• Log Up To 20 Min/Max Values
• Over 300 Parameters Available
• Daisy Chain 3 Additional Gauges
• Read 2-8 Parameters Per Gauge

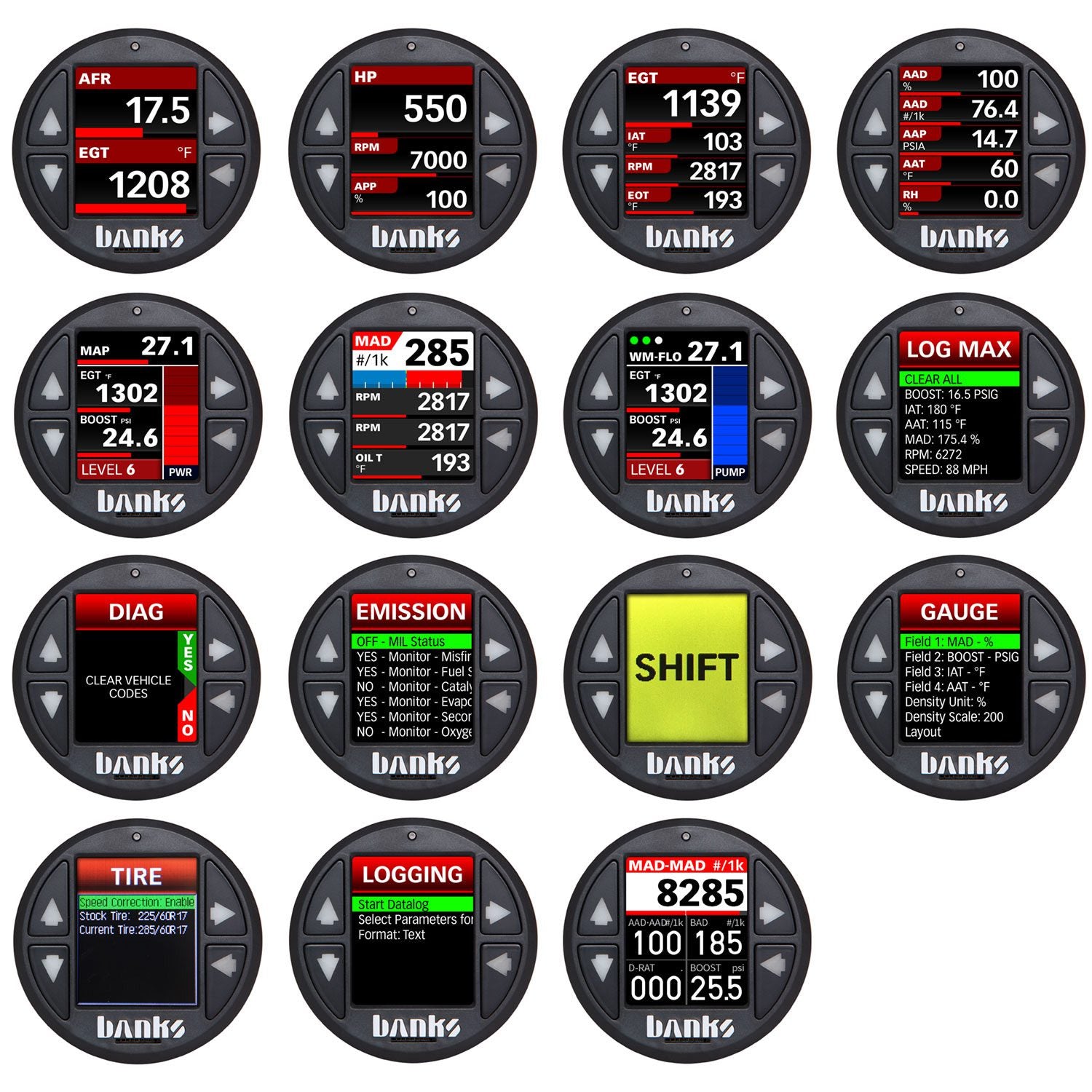

• Customizable Multiple Layout Display

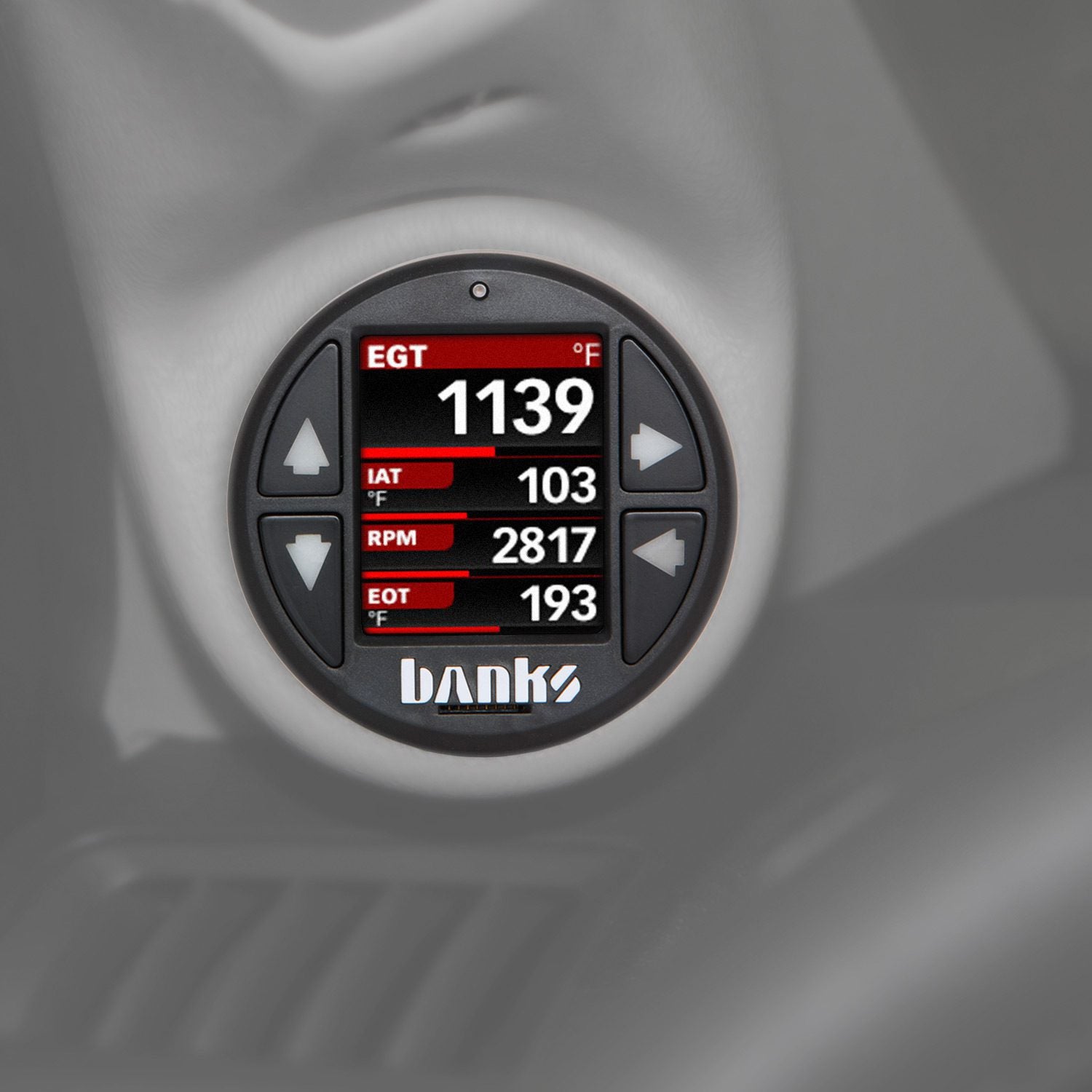

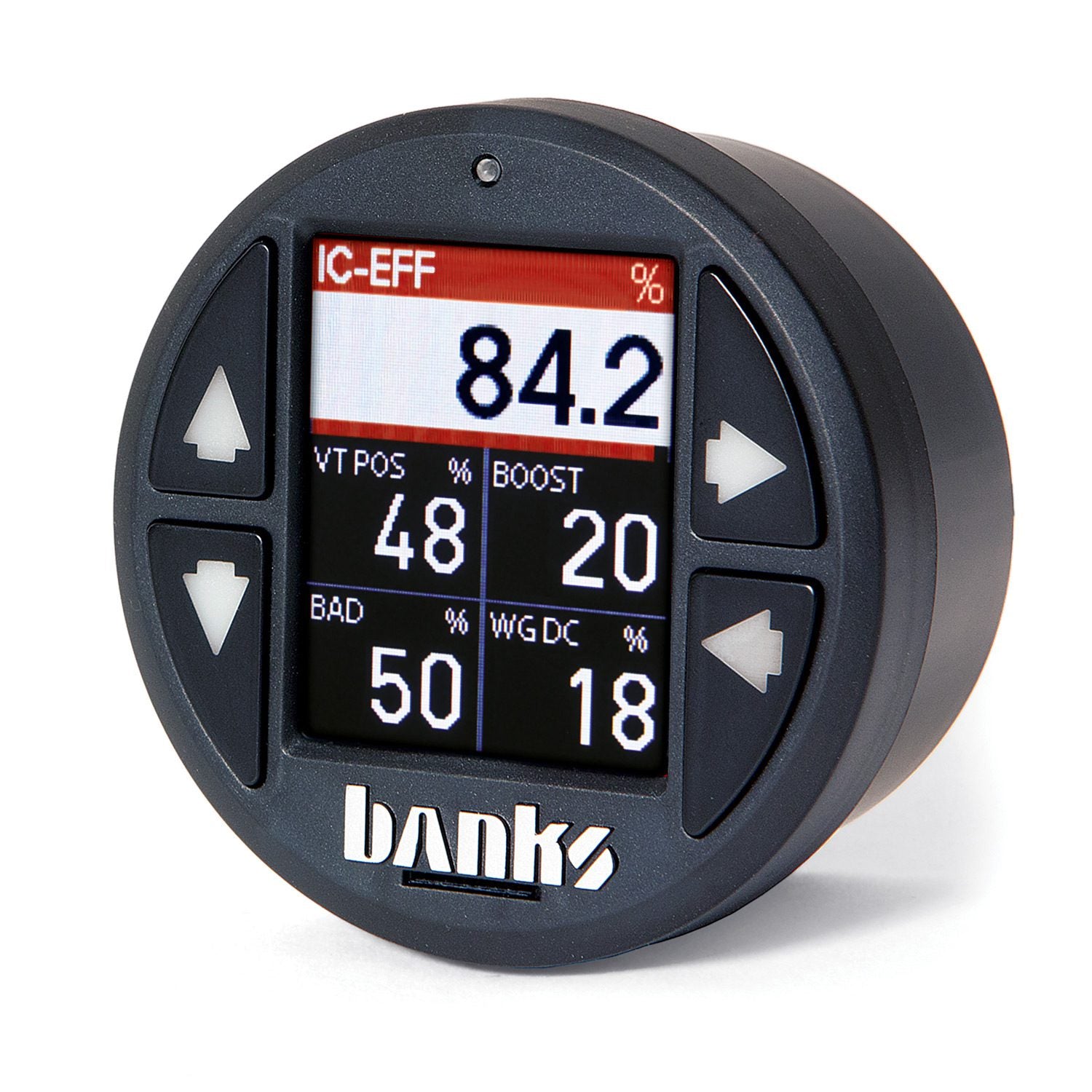

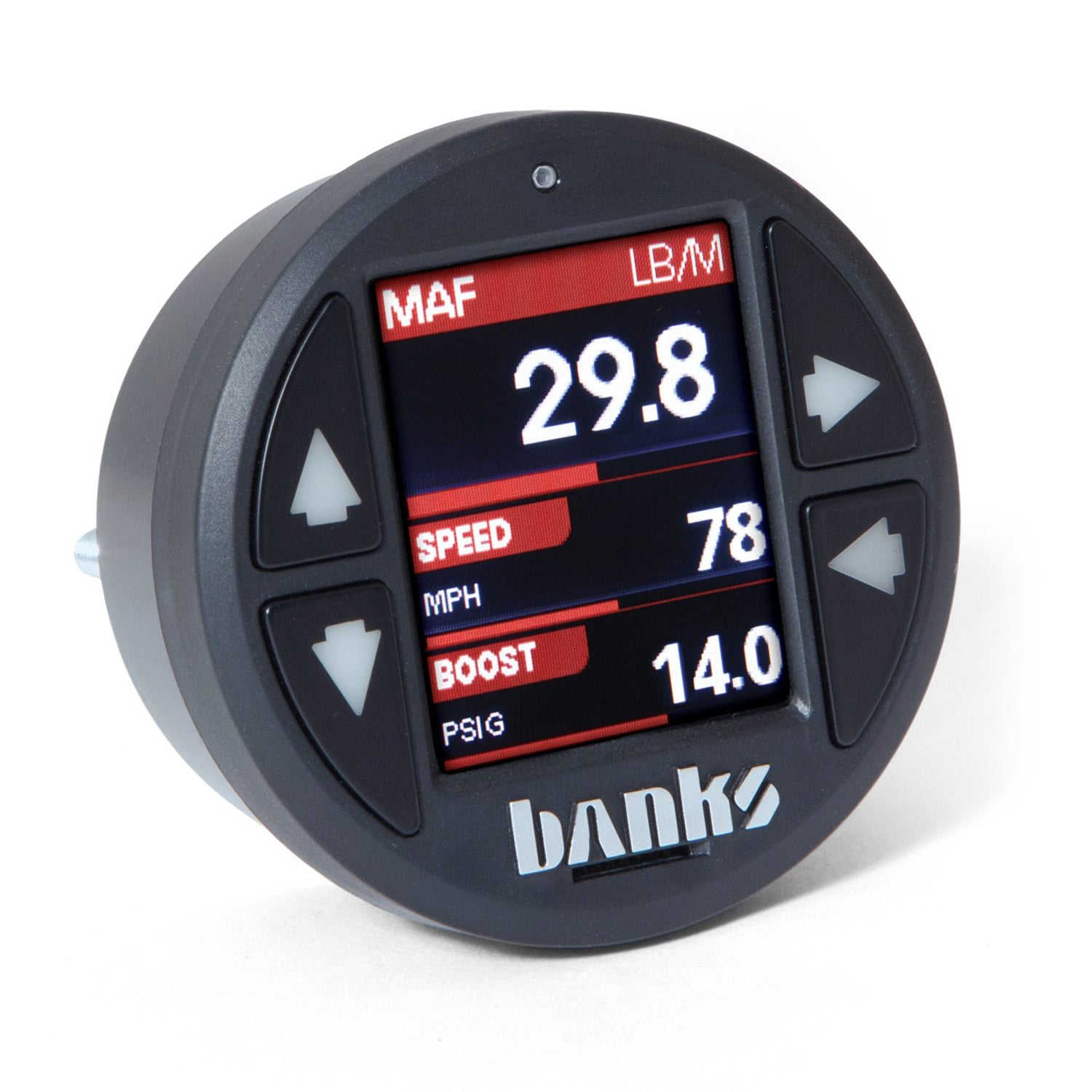

The Banks Power 66560 Universal iDash 1.8 SuperGauge is a standard sized 52mm (2 1/16″) “Super Gauge” that utilizes the OBD II port to display up to eight advanced parameters on a single screen in real time. This customizable gauge is packed with features like the ability to read and clear trouble codes, correct for tire size, set low/high alerts for up to 20 user selectable parameters, view density data, and much more. For those that want to monitor everything, the iDash 1.8 allows you to daisy chain 4 gauges together with a “Primary” gauge and up to 3 “Secondary” gauges giving you a maximum of 32 parameters being displayed at one time (8 parameters per gauge)! The iDash 1.8 works with all vehicles produced after 2008. Don’t just monitor your vehicles performance, define it with the Banks Power iDash!

Application Notes:

• This unit does not feature data logging.
• Will work with 2005-2007 Ford 6.0L Powerstroke trucks

To daisy chain iDash gauges, you will need 1 Universal iDash Gauge (66760) which is your primary gauge and up to 3 secondary gauges which would be the iDash 1.8 Expansion Gauge (66762).

Modern Diesel - Measurements for Towing

By using a pressure sensor located on the turbo’s compressor outlet you’ll measure boost pressure. Add a high temp thermocouple to the exhaust manifold to measure EGTs. Add a set of fluid temperature sensors to your transmission and your coolant system to measure vital temps.

Module used:

• One 4-Channel Analog (#66544)

Sensors and location:

Ambient Conditions

• AirMouse

Compressor Outlet 1/ Intercooler Inlet 1 Conditions

• Pressure: compressor outlet (#63085-100A)

Exhaust Conditions

• Analog EGT: exhaust manifold (#63065)

Fluid Conditions

• Fluid Temperature: coolant (#66558)
• Fluid Temperature: transmission (#66558)
