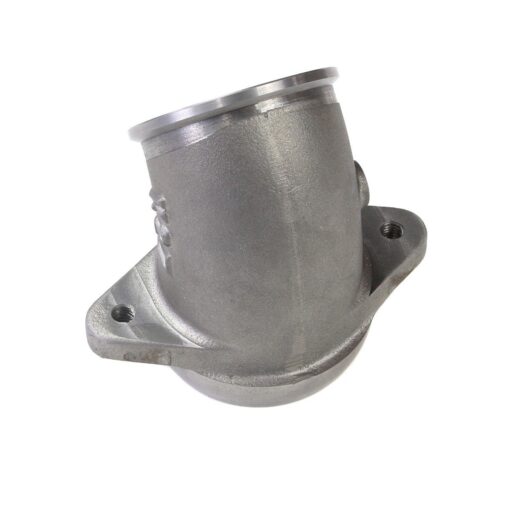

Information on the: Power Driven Diesel HX35/K27 Exhaust Elbow (229708) and K27 usage.
Borg Warner Turbos K27 turbocharger is capable of supporting diesel trucks up to 450HP. Featuring a 60/83.7mm Forged Milled Wheel (FMW). The 7/7-blade compressor is made to resist low- and high-cycle fatigue. The 70/58.83mm 12 blade Inconel turbine is made for quick response. The turbine wastegate housing is a twin-volute, and an adjustable wastegate actuator is preset at 26 PSI (325hp), which is safe up to 40PSI (450hp) with a Power Driven Diesel Turbo Tuner. Like the Holset, the oil inlet is a threaded M12 and the oil drain is threaded M8.
1998.5-2002.5 Cummins with an HX35W turbocharger, A Cummins 3927811 cast elbow, and a 3903652 v-clamp is needed to use your current downpipe.
1998.5-2002.5 Cummins with an HY35W, A Cummins 3927811 cast elbow, and a 3903652 v-clamp is needed to use your current downpipe. Replacement of the two studs installed into the original turbine inlet flange will also be needed
HX35/K27 Exhaust Elbow (229708) Compatible With:
-
- 1998.5 Dodge 5.9L 24V Cummins
- 1999 Dodge 5.9L 24V Cummins
- 2000 Dodge 5.9L 24V Cummins
- 2001 Dodge 5.9L 24V Cummins
- 2002 Dodge 5.9L 24V Cummins
*May not work for all builds due to other engine/vehicle modifications
Frequently bought with:
Dodge \ Ram Diesel
Power Driven 10 AN Block Oil Drain Fitting 89-07 Dodge Cummins
| Weight | 5 lbs |
|---|---|
| Dimensions | 4 × 4 × 3 in |
| Condition | New, Used |
