A4SPBD103 lift pump
A4SPBD103 lift pump

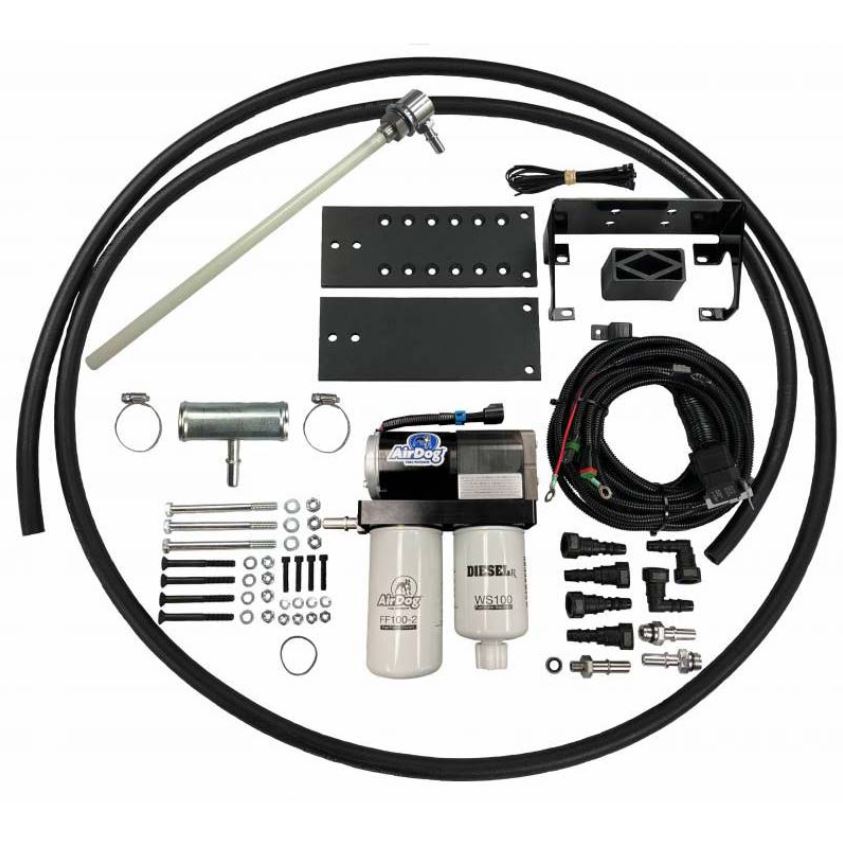

Airdog A4SPBD103 FP-150-4G Air/Fuel Separation System – Bundle

From $721.00

Features:

  • Compatible with: 1994-1998 5.9L Cummins
  • Low pressure (preset at 10 psi) lift pump
  • Perfect fit for daily drivers to performance applications reaching up to 1,000 RWHP!



Fuel Preporator

$721.00

In stock (can be backordered)

AirDog (FF100-2) 2-Micron Replacement Fuel Filter

$28.00

AirDog (WS100) Replacement Water Separator

$32.00
SKU: 60000000141 Category: Tags: ,

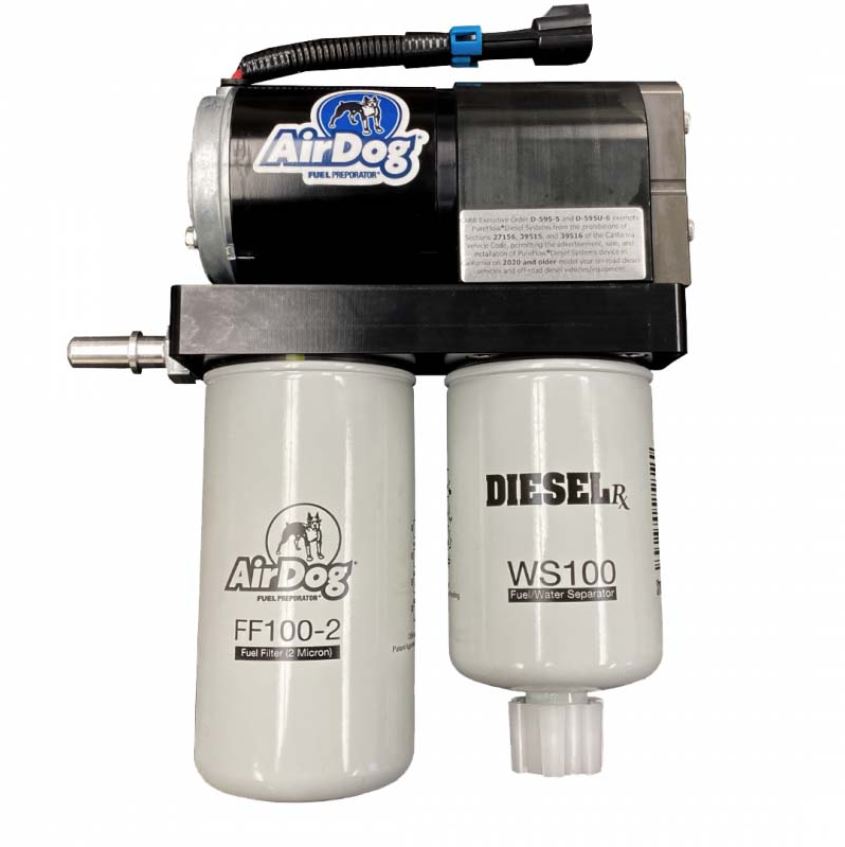

The Pureflow AirDog FP-150 4G A4SPBD103 lift pump, or Fuel Preporator, is a must have upgrade for your 1994 – 1998 Cummins. The fuel system on your diesel truck is the heart of the vehicle’s performance and reliability. This low pressure (preset at 10 psi) Cummins lift pump mounts to the inner frame rail using the supplied sandwich plate mounting system. The suction/fuel supply side connects directly up to the factory suction line on the frame rail.  The pressure side connects to the factory injection feed line bypassing the stock frame mounted low pressure pump.

DESCRIPTION:

The 4G fuel pump features a fully adjustable integrated diaphragm pressure regulator. This regulator offers more consistent fuel pressure and allows for higher flow rates at pressure.  It can also be boost compensated to battle any pressure drops under open throttle (boost compensation kits sold seperately). The AirDog 4G also includes an updated 12 gauge wiring harness with Metri-Pack 280 connectors, which allows for higher current flow without creating excessive heat.

The AirDog FP-150 4G A4SPBD103 lift pump will solve infamous P0087 & P1093 low fuel rail pressure codes. This positive supply being fed to your injection pump will also add performance, throttle response, and longevity to your vehicle. Due to extra stress on your fuel system from either high mileage and/or additional performance modifications, like a tuner or larger injectors, your injection pump can become weak over time. This may result in a drop of performance, reliability, and fuel economy. The supplied water separator (WS100) and fuel filter (FF100-2) mount to the pump. They filter your fuel down to a 2 micron rating which surpasses the stock fuel filters filtration capability.

This AirDog FP-150 4G Cummins A4SPBD103 lift pump is recommended for trucks that have a stock to aggressively upgraded fuel system. Therefore moving stock to larger injectors and injection pumps; will also support aggressive tuning. Perfect fit for daily drivers to performance applications reaching up to 1,000 RWHP!  Backed by a lifetime warranty.

AIRDOG’S GUARANTEE

The AirDog FP-150 4G for the 94-98 Cummins is engineered with the most proven, quiet and reliable motor technology on the market.  It also retains the “demand flow” capabilties of the previous AirDog systems.  This means that is has a constant supply of clean, pure fuel available for your injector pump at all times.  Any fuel not used by the engine is simply recycled back to the tank, so it will never “over-fuel” your system.  The FP-150 4G A4SPBD103 uses the same better-than-OEM fuel filter (FF100-2) and water separator (WS100) as the previous AirDog models.  Pureflow AirDog products are manufactured in Shelbyville, Indiana. Finally, built by a team of skilled workers with unsurpassed attention to detail and using the most stringent quality assurance.

Compatible With:

    • 1994 Dodge 5.9L 12V Cummins
    • 1995 Dodge 5.9L 12V Cummins
    • 1996 Dodge 5.9L 12V Cummins
    • 1997 Dodge 5.9L 12V Cummins
    • 1998 Dodge 5.9L 12V Cummins

*May not work for all builds due to other engine/vehicle modifications

Check out the PDD Youtube for anything and everything diesel performance!



INSTALLATION MANUAL
